Αρχική Σελίδα /Προϊόντα/Δοκιμαστής πάχους επικάλυψης/Coating Thickness Gauge Meter F Probes Range 0-1000um Copper Zinc Aluminum Digital Tester CM-8821

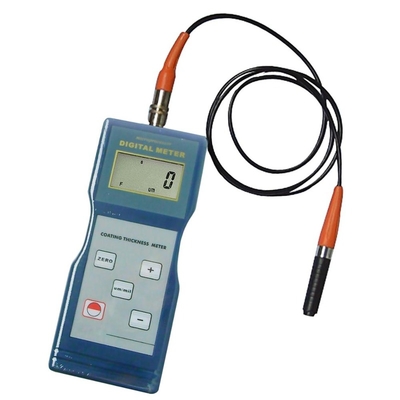

Coating Thickness Gauge Meter F Probes Range 0-1000um Copper Zinc Aluminum Digital Tester CM-8821

1 Piece
MOQ
$128.38(1 - 2 Pieces) $125.00(3 - 5 Pieces) $118.75(6 - 9 Pieces) $115.85(>=10 Pieces)
τιμή
Coating Thickness Gauge Meter F Probes Range 0-1000um Copper Zinc Aluminum Digital Tester CM-8821
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: CM-8821
Power: 4x1.5V AA battery
Type: Coating Thickness Meter
Operating principle: magnetic induction (F)
Measuring range: 0-1000um
Resolution: 0.1/1
Accuracy: +/-1-3%n or +/-2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Operating conditions: 0-+45 degree C(32 degree F-104 degree F),≤90%RH
Dimensions: 160 x 68 x 32mm
Weight: 250g(not including battery)
Βασικές πληροφορίες
Model Number: CM-8821
Πληρωμής & Αποστολής Όροι
Packaging Details: Standard Factory Package
Περιγραφή προϊόντων
Features

  • Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
  • Conforms to international standards and passed the standards of ISO2178
  • Suitable for the laboratory and for use in harsh field conditons
  • Widely used to measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome, etc. ) on magnetic materials (e.g. iron, nickle, etc. ) often used to measure the thickness of plating layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper, etc.
  • Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement and fast measuring time
  • Performs Automatic Calibration when no substrate or metal substrates are near the sensor probe
  • Allows re-calibration using the included iron subrate block or an uncoated standard
  • With wide measuring range of 1000µm/0-40mil and high resolution
  • Digital display gives exact reading with no guessing or errors
  • Durable, long-lasting components with strong but light weight ABS-plastic housing assures maintenance free performance for many years. The housing had been carefully shaped to fit comfortably in either hand.
  • Applications: Suitable for the laboratory, Powder Coating Companies, Manufacturing Companies, Paint Suppliers, Manufacturing Companies, Steel and Aluminum Refinishing, Automobile Dealers, Auto Auctions, Body Shops, Auto Detailers and any company needing a highly accurate measurement of the dry coating thickness and can be used even in harsh field conditions.

Specifications

  • Operating Principle: Magnetic Induction (F)
  • Measuring Range:0~1000µm / 0~40mil
  • Resolution:
    • 0.1µm (0~99.9µm)
    • 1µm (over 100µm)
  • Accuracy: ±1~3%n or ±2.5µm (whichever is greater)
  • Min. measuring area: 6mm
  • Min. sample thickness: 0.3mm
  • Metric/ imperial: convertible
  • Auto power off
  • Automatic Calibration (when no other metal substrate near the probe sensor upon switching on)
  • Display: 4 digits, 10mm LCD.
  • Operating conditions:
    • Temperature 0~50°C (or 32~122 in °F)
    • Humidity <80%
  • Battery indicator: Low Battery Indicator
  • Power supply: 4 x AA 1.5V battery
  • Dimensions (main unit): 67 x 168 x 31mm
  • Weight:
    • Main Unit: 155g (battery excluded)
    • Whole Packaging: 690g (battery excluded)


Set Includes

  • 1 x Digital Coating Thickness Gauge
  • 1 x F type Probe with 1M cable
  • 1 x Iron Substrate Block
  • 4 x Calibration Foil
  • 1 x Plastic Pouch
  • 1 x Carrying case
  • English Instruction manual
  • Standard Factory Package
